Epicycloids

Posted on by
Reply

Roulettes – 2: Epicycloids

In the last post we saw how a cardioid can be generated by watching the locus of a point on as one circle rolls around another circle with the same radius. In the first post of this series Roulette Generators are explained. Here are the files for Winplot or Geometer’s Sketchpad. Use them to quickly see the graphs of these curves by adjusting one or two parameters.

The parametric equations of these curves are below. R and S are parameters that are adjusted for each curve.

x\left( t \right)=(1+R)\cos \left( t \right)-S\cos \left( \tfrac{1}{R}t+t \right)

y\left( t \right)=\left( 1+R \right)\sin \left( t \right)-S\sin \left( \tfrac{1}{R}t+t \right)

A cardioid, a type of cycloid R=S=1;\quad 0\le t\le 2\pi

If the circles have the same radii and therefore the same circumferences, as the moving circle rolls around the fixed circle once, the point traces a path called a cardioid, and returns to its original orientation.

Let’s see what happens if we make the moving circle smaller. Make R= S = ½. Now the radius of the moving circle is one-half the radius of the fixed circle. The circumference is also half the circumference of the fixed circle. The smaller circle makes two rotations in going once around the larger circle before returning to the initial orientation.

Epicycloid

Epicycloid R = S = 0.5 R=S=0.5\quad 0\le t\le 2\pi

Now try other values keeping R = S. Make their values unit fractions, 1/n where n is a positive integer. (Note that \tfrac{1}{R}=n.) Here are some examples:

For R = S = 1/n there are n sections of the graph as t goes from 0 to 2\pi . The places where the cycles end are evenly spaced around the fixed circle and the locus has a cusp at these places.

What if we use other rational numbers? All of a sudden things are very different:

R=S=\tfrac{2}{3}\text{, }0\le t\le 2\pi

Now the circumference of the larger circle is not a multiple of the circumference of the smaller. To return the circle to its starting orientation we have to go around once more by letting t go from 0 to 4\pi . The first time around (from 0 to 2\pi ) is shown in orange and the rest of the path in blue.

R=S=\tfrac{2}{3},\quad 0\le t\le 4\pi

Investigation 1: Using the ratio of the radius of the fixed circle to the moving circle, determine how many times the moving circle must go around the fixed circle to draw a complete curve.


If  R=\frac{n}{d} is a rational number (reduced), then by increasing the maximum value of t to 2n\pi  the moving circle will return to its original position after n revolutions and after  that the curve will be retraced. This is the same regardless of whether \tfrac{n}{d} is greater than or less than 1.

We now turn our attention to the cusps; the places where the point “bounces off” the fixed circle.

Investigation 2: Using the ratio of the radius of the fixed circle to the moving circle, determine how many cusps the graph will have.

For these curves, If R=\frac{n}{d} there are d places where the locus “bounces” of the fixed circle. These appear as cusps of the locus.

R=S=\tfrac{7}{5}\text{, }0\le t\le 14\pi

Finally, if R is not rational, the moving circle will never return to its original orientation and the locus will keep adding cusps as the circle continues to roll round the fixed circle

R=S=\sqrt{2},\quad 0\le t\le 100

Curves of this type, with the moving circle smaller or larger than the fixed circle and R = S, are called epicycloids. Epicycloids are a special case of Epitrochoids which will be the subject of the next post in this series.

Investigation 3: Determine the value of t for each cusp, of a graph with d cusps.

Solution left as an exercise.

Investigation 4: Investigate the derivative at a cusp.

Solution left as an exercise. This will be discussed in a later post.

References:

Cardioids: http://en.wikipedia.org/wiki/Cardioid

Epicycloids: http://en.wikipedia.org/wiki/Epicycloid

Epitrochoids: http://en.wikipedia.org/wiki/Epitrochoid

Corrections made July 5, 2014

Rolling Circles

Posted on by
Reply

A few weeks ago I covered some trigonometry classes for another teacher. They were studying polar and parametric graphs and the common curves limaçon, rose curves, cardioids, etc. I got to thinking about these curves. the next few posts will discuss what I learned. To help me see what was happening I made a Winplot animation. My “Roulette Generator” (RG) is a rather simple setup and turned out to be very well suited to study a variety of curves: cardioids, epicycloids, epitrochoids, hypochoids, and hypotrochoids to name a few. They are all examples of roulettes – curves generated by a point on a curve as it moves around anther curve. I considered only cases where both curves are circles. Calculus will make it appearance after the first few posts in this series. I hope you will find information here that will let you make a good project or investigation for calculus or precalculus students. The RG can be set to graph any number of situations as I will discuss. So here goes.

Roulettes – 1: Equations and the Roulette Generator.

In this post I will discuss the derivation of the parametric equations used to make the animations and some notes on how to use the RG. Later posts will discuss some of the various curves that result. I began with a simple cardioid.

R1

Cardioid R = S = 1

A cardioid is defined as the locus of a point on a circle as it rolls without slipping around another circle with the same radius.

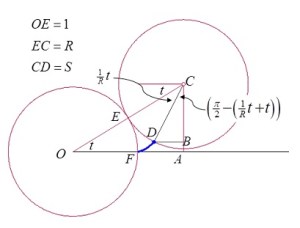

The setup described here will allow us to change the equations using sliders, for this and a number of related curves. The two circles with the same radii are shown in the figure below. The circle with center at C rolls counterclockwise around the circle with center at the origin, O. The point D traces the cardioid. The blue curve from F to D is the beginning of the cardioid. Cardioid setup pix The equations of the circles are: The circle centered at the origin with radius 1:

x\left( t \right)=\cos \left( t \right)\text{ and }y\left( t \right)=\sin \left( t \right)

The moving circle with center at C and radius R:

x\left( t \right)=(1+R)\cos (t)+R\cos (t) and

y\left( t \right)=(1+R)\sin \left( t \right)+R\sin \left( t \right).

The equation of the locus: In the figure above, the locus of the point marked D, as the moving circle rolls counterclockwise around the fixed circle, will be the path of the curves. A small portion of the curve is shown in blue running from F to D. In our investigations we will eventually want to place the moving point inside, on, or outside the moving circle. To do this we will use S as the distance from the center of the moving circle to the point we are watching. For the moment and for the simple cardioid, we will assume they are the same: R=S=1.

The ratio of the radius of the fixed circle to the radius of the moving circle is 1/R,  and will be of interest. The ratio can be adjusted by changing R. We can, therefore, keep the fixed circle’s radius constant and equal to one.

We will use vectors to write the locus. Before writing the individual vectors consider first that the arc length on both circles is always the same for all the curves and combinations of their radii:

\text{arc }EF=t=\text{arc }DE=R\left( \measuredangle DCE \right).

Therefore, \measuredangle DCE=\tfrac{1}{R}t. Then  \measuredangle BCD=\tfrac{\pi }{2}-\left( \tfrac{1}{R}t+t \right) Then the locus of D has the vector equation:

\overrightarrow{OD}=\overrightarrow{OA}+\overrightarrow{AC}+\overrightarrow{CB}+\overrightarrow{BD}

\overrightarrow{OD}=\left\langle (1+R)\cos (t),0 \right\rangle +\left\langle 0,\left( 1+R \right)\sin \left( t \right) \right\rangle +

\left\langle -S\sin \left( \tfrac{\pi }{2}-(\tfrac{1}{R}t+t) \right),0 \right\rangle +\left\langle 0,-S\cos \left( \tfrac{\pi }{2}-(\tfrac{1}{R}t+t) \right) \right\rangle

Notice that \left( \tfrac{1}{R}t+t \right) is the complement of \left( \tfrac{\pi }{2}-\left( \tfrac{1}{R}t+t \right) \right), so that \sin \left( \tfrac{\pi }{2}-(\tfrac{1}{R}t+t) \right)=\cos \left( \tfrac{1}{R}t+t \right) and  \cos \left( \tfrac{\pi }{2}-(\tfrac{1}{R}t+t) \right)=\sin \left( \tfrac{1}{R}t+t \right). The parametric equations of the path are

x\left( t \right)=(1+R)\cos \left( t \right)-S\cos \left( \tfrac{1}{R}t+t \right)

y\left( t \right)=\left( 1+R \right)\sin \left( t \right)-S\sin \left( \tfrac{1}{R}t+t \right)

You may enter these equations on any graphing calculator by entering specific values of R and S. You will have to re-type them for each different curve. With the RG you can make the changes easily with sliders.

The roulette generators: I used Winplot a free graphing program I’ve used for years. Here are the links so you can download Winplot or Winplot for Macs. the Winplot file containing the generator is here: Winplot Roulette Generator. [Sorry, this is no longer available here and WordPress will not accept Winplot files for download. Please contact me at lnmcmullin@aol.com and I’ll send you a copy.] The Winplot equations are discussed here: Notes on the Roulette Generator.

A Geometer’s Sketchpad version may be downloaded Geometer’s Sketchpad Roulette Generator. You will need Geometer’s Sketchpad to run this on a computer or the “Sketch Explorer” app for iPads and other tablets. A big ‘Thanks” to Audrey Weeks who was kind enough to make this for us. Audrey is the author of the Algebra in Motion and Calculus in Motion software. Audrey is my “go to” person when I have math questions.

Other graphers with sliders such as Geogebra and TI-Nspire will probably work as well. For those who wish to adapt this to some other graphing program there are some syntax consideration to making the one circle roll around the other and showing the path as the circle rolls. If you make your own generator on one of these other platforms, please send it along and I’ll post it and give you credit.

Experiment with the R and S sliders. In the next several posts well will do this and learn about various other curves.

Next: Epicycloids

References:

Cardioids: http://en.wikipedia.org/wiki/Cardioid

Roulettes: http://en.wikipedia.org/wiki/Roulette_(curve)

Algebra in Motion

Calculus in Motion
